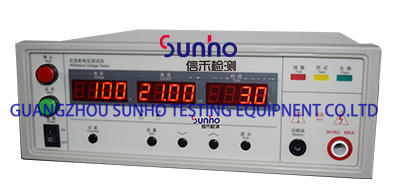

Withstand Voltage Tester (Benchtop) according to IEC 60335-1, IEC 60601-1 and other international standards for electrical appliances and products.
Technical Parameters.
1. Range: 10mA
Output Voltage
1, Output voltage range AC 100 ~ 5000V
2, Output voltage accuracy (2% of reading value + 3V)
3、Output voltage adjustment rate earth (2% of set value +5V)
4、Output voltage resolution 1V
5、Output waveform and frequency sinusoidal (crest factor 1.3~1.5), 45Hz~100Hz selectable, step rate 1Hz.
Strike current
1、Upper limit setting range 0.001 mA~ 10.00mA
2、Lower limit setting range 0.001mA ~ 10.00mA (0=off)
3、Measuring range 0.020mA ~ 10.00mA
4、Measurement resolution 0.001mA/0.01mA
5, Measurement accuracy + (2% reading value + 3 words)
6, current zero 0.000-9.999mA
7、Test time 0.0~ 999.9s .
